Audio FundamentalsGUIDE · LESSON 5

Polar Patterns and Placement

01 — Definition

A microphone's polar pattern describes how its sensitivity changes with direction, and the real skill is learning to aim a mic by its dead zones as much as by its front. Each pattern has a different shape of "deafness" that you can point at your problems.

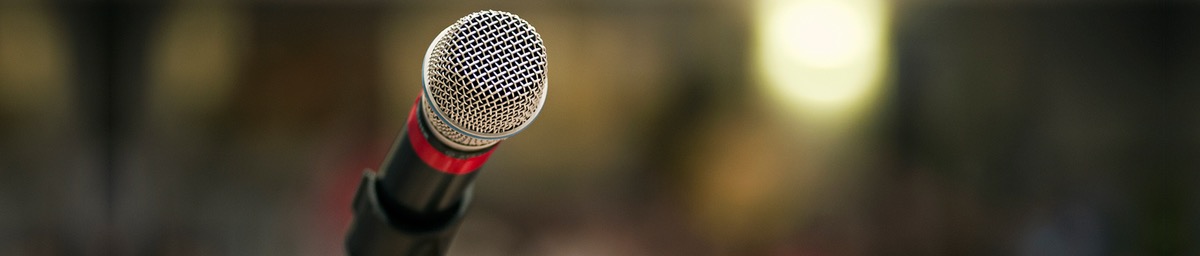

Polar Patterns
Photo : Ben Grey, CC BY-SA 2.0, via Wikimedia Commons
02 — The guide

An omnidirectional mic hears equally in every direction. It has the most natural, open tone but offers no rejection at all. A cardioid hears the front and is deaf directly behind it, at 180 degrees — the everyday pattern for live work. A supercardioid tightens the front pickup but trades a small lobe of sensitivity at the rear, with its deepest rejection sitting near 126 degrees off-axis. A hypercardioid is tighter still, rejecting most strongly around 110 degrees with an even larger rear lobe. Knowing where each pattern is deaf is what lets you place a vocal mic so the monitor wedge sits in its quietest angle rather than straight behind it, where a supercardioid would actually pick the wedge up.

Directional mics also do something omnis cannot: they show proximity effect. As the source moves in close, the low frequencies rise, because these mics respond to the difference in pressure across the capsule. A singer working right up on the grille gets a warm, chesty boost below a few hundred hertz; back them off and the tone thins out again. You can use that as a tool or fight it as a problem, but either way it is part of the instrument. All of which leads to the same practical truth: moving a microphone a few centimetres changes its tone, its isolation, and its gain-before-feedback more than any amount of EQ further down the chain.

03 — The rule

Position solves problems that EQ cannot.
